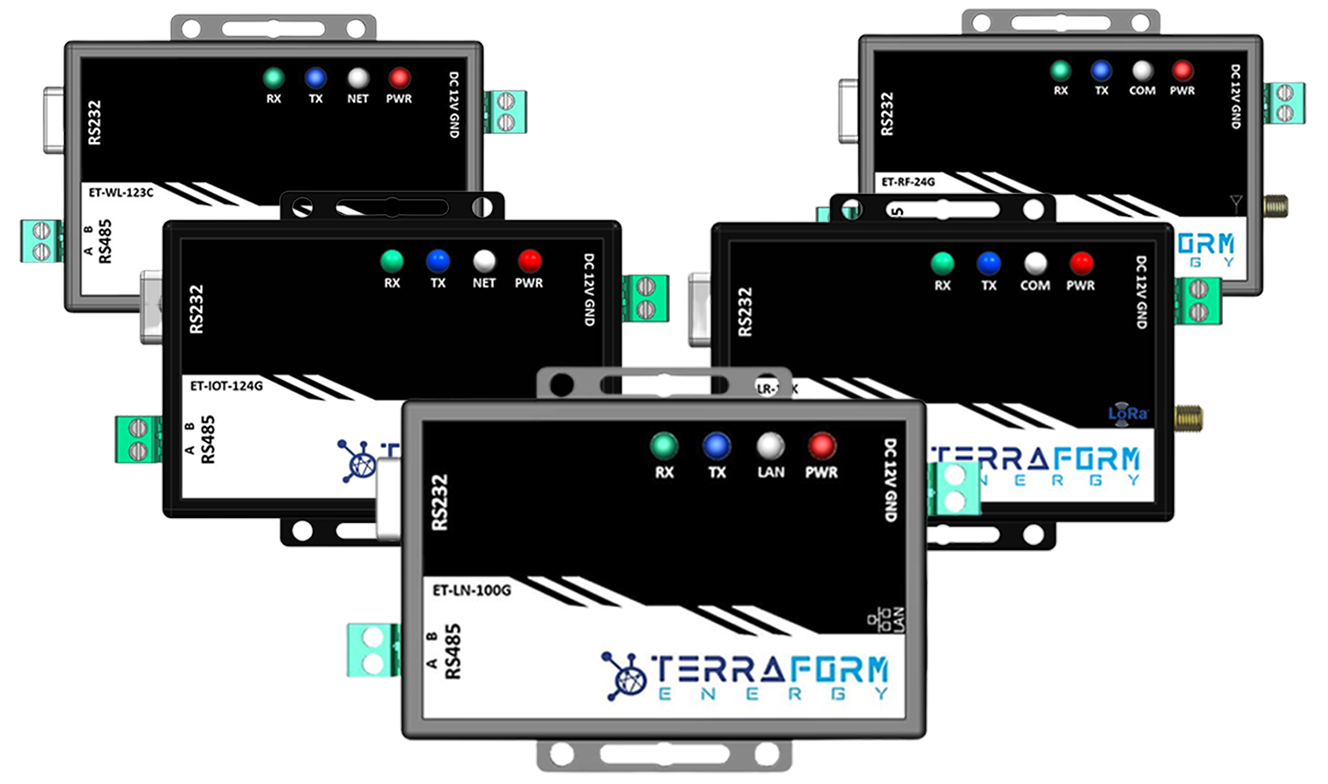

Sensor data collection with ET-series-data IoT gateways

Energy Track - ET Series of Data Loggers are our newest fleet of data acquisition & concentrator modems that can work in any residential, commercial or industrial data acquisition project. These modems can perform both in standalone applications or situations where multi-modal networks need to be established. These data-loggers are designed with a view of maximizing efficiency & reducing packet drops in data intensive applications without the need to worry about network or hardware layers that make data acquisition or reception a challenge. Our loggers can be used with analog and digital sensor interfacing protocols like Modbus, DLMS, TCP/IP, 4-20 mA, RTD, I2C, DI, DOs etc.

Download Catalogue

Products

services

ET-WL-123C
RS232/ RS485 to Wi-Fi IoT Gateway

Wi-Fi 802.11 b/g/n Wi-Fi @ 2.4GHz
Transmit Protocol TCP, HTTP, HTTPS and MQTT
Data Formats JSON, String, Customizable
Antenna Default Internal, Optional SMA Antenna
RS485 Port Multiple Modbus Slave Device Connection
RS232 Port P2P Single Slave Device Connection
LED Indicator Power, Network, Rx, Tx
Operating Voltage 12V - 24V DC
Download Catalogue

ET-RF-24G
RS232/ RS485 to RF Wireless IoT Gateway

RF 2.4 GHz ISM
RF Channels 126
Range Indoor (Line Of Sight) – 300 Meters
Outdoor (Line Of Sight) – 800 - 1000 Meters
Sensitivity -82dBm @ 2Mbps / -85dBm @ 1Mbps / -94dBm @ 250kbps
Data Formats JSON, String, Customizable
Antenna Default External SMA Antenna
RS485 Port Multiple Modbus Slave Device Connection
RS232 Port P2P Single Slave Device Connection
LED Indicator Power, Communication, Rx, Tx
Operating Voltage 12V - 24V DC
Download Catalogue

services

ET-LR-10K
RS232/ RS485 to LoRa Wireless IoT Gateway

LoRa 863-870 MHz EU
Channels Up to 81
Range Indoor (Line Of Sight) – Up to 5 KM
Outdoor (Line Of Sight) – Up to 10 KM
Sensitivity Receiver -147dBm @ 0.3 kbps
Data Formats JSON, String, Customizable
Antenna Default External SMA Antenna
RS485 Port Multiple Modbus Slave Device Connection
RS232 Port P2P Single Slave Device Connection
LED Indicator Power, Communication, Rx, Tx
Operating Voltage 12V - 24V DC
Download Catalogue

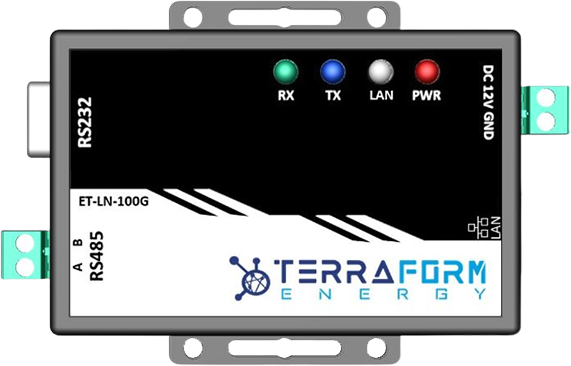

ET-LN-100G
RS232/ RS485 to Wi-Fi/ LAN IoT Gateway

Communication 2.4 GHz & 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN
Bluetooth 5.0, BLE
Gigabit Ethernet 100G
Transmit Protocol TCP, HTTP, HTTPS, FTP, FTPS and MQTT
Data Formats JSON, String, CSV, XML, TXT, Customizable
Antenna Default Internal
RS485 Port Up-To 32 Modbus Slave Device Connection
RS232 Port P2P Single Slave Device Connection
LED Indicator Power, LAN, Rx, Tx
Operating Voltage 12V - 24V DC
Download Catalogue

services

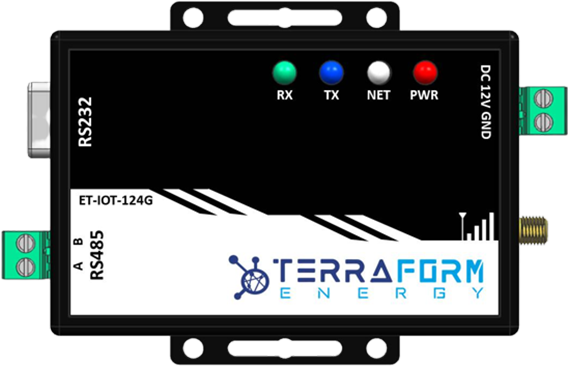

ET-IOT-124G
RS232/ RS485 to 4G LTE IoT Gateway

Cellular 4G LTE CAT 1
Data Transfer Rate Uplink up to 5Mbps , Downlink up to 10Mbps
LED Indicators Power, Network, Rx, Tx
Supported Bands 1/3/5/8/34/38/39/40
RS485 Port Up-To 32 Modbus Slave Device Connection
RS232 Port P2P Single Slave Device Connection
Mounting Wall Mounting / Chassis Mountable / Table Top
Antenna Default External SMA Antenna
Operating Voltage 12 V - 24V
Download Catalogue
